Main features:
1. High temperature control accuracy, stable and reliable performance.
2. Digital display of water temperature Temperature controller, precise, stable, and reliable.
3. Equipped with automatic control and protection alarm devices, as well as fault signal output.
4. The water temperature and flow can be adjusted as needed
5. Easy to operate, can work continuously for a long time
6. All stainless steel water tank and southern water pump The expansion valve automatically throttles.

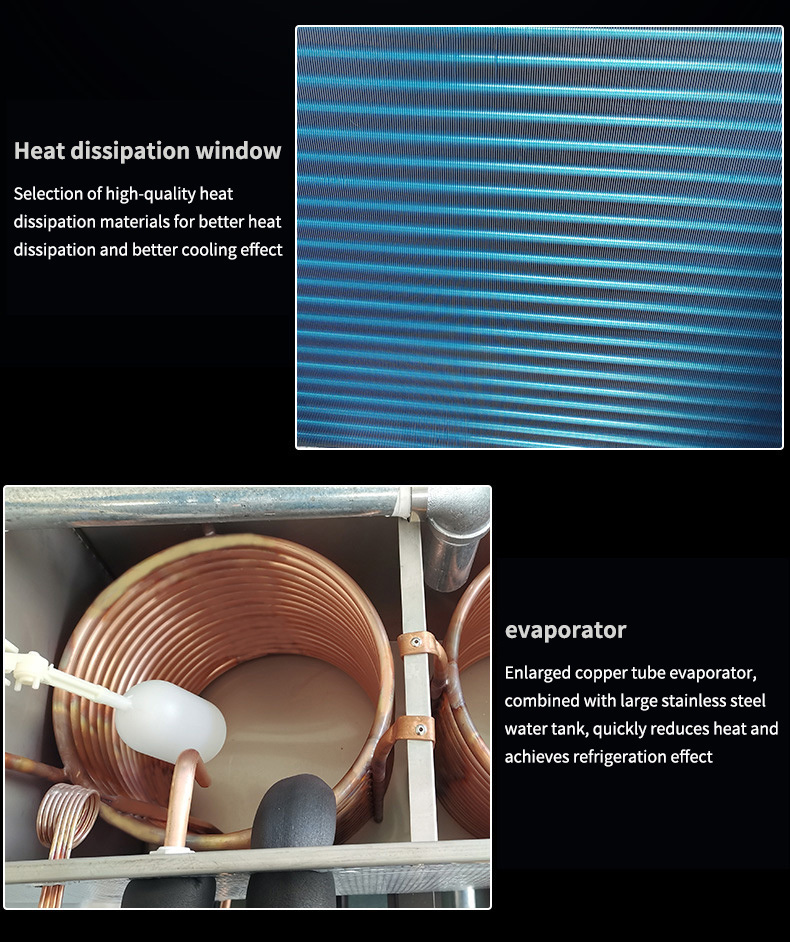

7. Use a V-shaped radiator to increase the heat dissipation area.

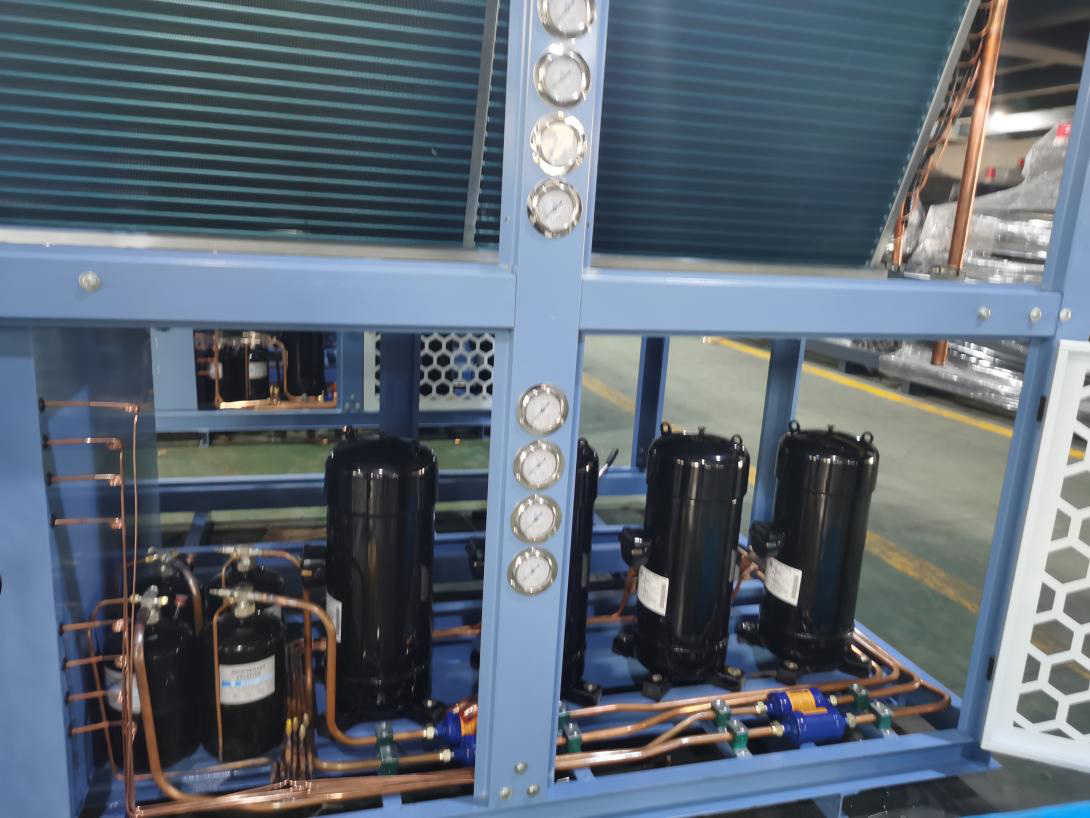

8. Adopting original high-efficiency scroll compressor, safe, energy-saving

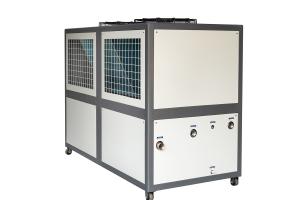

Working principle of air-cooled chiller:
During the operation of an air-cooled chiller, the refrigerant absorbs heat from the object being cooled in the evaporator and vaporizes. The compressor continuously extracts the generated gas from the evaporator and compresses it into high-temperature, high-pressure steam. The refrigerant vapor is then sent to the condenser for heat exchange with air and condenses into liquid after releasing heat. After being depressurized by the throttling mechanism, it enters the evaporator and vaporizes again, absorbing heat from the object being cooled. This cycle repeats itself.
Schematic diagram and unit characteristics of industrial chiller:
A chiller is an energy-saving machine that achieves cooling effect through steam compression or absorption circulation. The full name of a chiller is a cooling water circulation machine, also known as a refrigeration machine, cooling machine, freezer, chiller unit, ice water machine, small chiller, industrial chiller, refrigeration unit, low-temperature chiller, laser chiller. Due to its widespread use in various industries, there are countless aliases depending on the industry.
The refrigeration system of a chiller unit consists of four basic parts: compressor, condenser, throttle, and evaporator. Connect the four major components in a certain order using copper pipes to form a closed system, which is filled with a certain amount of refrigerant.
The compressor sucks in low-temperature and low-pressure Freon gas from the evaporator, compresses it into high-temperature and high-pressure Freon gas, and then flows through a thermal expansion valve (capillary tube), throttling it into a low-temperature and low-pressure Freon liquid two-phase object. Then, the low-temperature and low-pressure Freon liquid absorbs heat from indoor air in the evaporator, and the cycle of compression condensation throttling evaporation is repeated.
The industrial chiller is equipped with a compressor switch button, a water pump switch button, an electronic temperature controller, various safety and safety fault lights, and a unit start and operation indicator light. It is easy to operate and use. Industrial chiller unit configuration: equipped with a single-chip control system, built-in compressor drying and expansion valve devices, ensuring reliable and safe operation of the machine, and facilitating maintenance and repair.
Application industry of chiller:
Chillers are mainly used in the plastic industry for plastic molding, injection molding, extrusion molding, bottle blowing, and thermoforming. In the mechanical industry, laser technology, welding, mechanical cutting, non cutting processing, casting, electroplating, and the electronics industry for surface treatment, electroplating, electrophoresis, medical equipment, electronics, circuit board production, and electronic chip manufacturing. In the chemical industry and other industries, such as chemical, papermaking, pharmaceutical, food processing, aluminum profiles, aluminum alloys, tempered glass, coated glass production, ultrasonic cleaning, jewelry processing, leather and fur processing, ink production, and animal husbandry.
Different applicable scenarios and customized services for chillers:
Air cooled chillers can be customized, ranging from 3P to 50P
The air-cooled screw machine can be customized from 40P to 320P
1.Screw style chillers(double head)
2.Screw syle air cooled chillers
3.High efficent flooded type screw style chiller
4.Magnetic bearing chiller
5.Industrial air conditioning cooling system
6.Industrial chillers(water cooled)
7.Industrial chillers(air cooled）
8.Industrial oil cooling chiller
9.Plating bath cooling chillers
10.Aluminum oxide chiller
11.Electrophoresis dedicated chiller
12.Extrusion coating chiller
13.Extruder chillers
14.Blower chillers
15.Blown film chillers
16.Leather chillers
17.Chemical
18.Injection chillers
19.Plastic forming chillers
20.Chemical fiber chiller
There are 22, 404, 407, and 410 refrigerant models for chillers
410 belongs to high-pressure refrigerant
404 low-temperature refrigerant
407 with environmental protection
